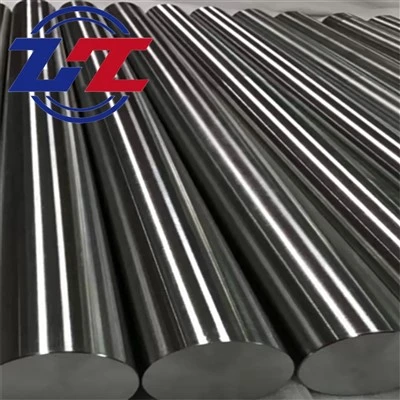

C103 Niobium Alloy Bar For High Temperature Applications

C103 Niobium Alloy Bar For High Temperature Applications

C103 niobium hafnium alloy bars are made from Nb-10Hf-1Ti alloy for demanding high-temperature applications. Custom diameters, lengths, and material requirements can be reviewed according to project specifications before production.

Description

Shaanxi Zhongheng Weichuang Metal Materials Co., Ltd. is one of the leading manufacturers and suppliers of c103 niobium alloy bar for high temperature applications in China. We are committed to providing high quality customized products with competitive price. Please feel free to buy durable c103 niobium alloy bar for high temperature applications for sale here from our factory. Also, quotation is available.



Why Choose Our C103 Niobium Alloy Bar

As a specialized manufacturer of refractory metals, we focus on providing high-purity niobium alloys with consistent quality for industrial applications.

Stable Chemical Composition

The alloy is based on Nb-10Hf-1Ti (C103), with strict control of interstitial elements such as oxygen, nitrogen, and hydrogen to ensure material stability.

Reliable High-Temperature Performance

C103 alloy maintains good strength and structural stability at temperatures above 1200°C, especially in vacuum or controlled environments.

Consistent Mechanical Properties

Uniform microstructure and controlled processing ensure good machinability and formability, with stable performance from batch to batch.


C103 Niobium Hafnium Alloy Bar, Manufacturing and Quality Inspection

Niobium hafnium alloy c103 manufacturer
C103-Niobium-Hafnium-Alloy-Bar
Niobium hafnium alloy c103 factory
Refractory-Metal-Vacuum-Melting-Equipment
Sell niobium hafnium alloy c103
C103-Alloy-Quality-Inspection.
Customized niobium hafnium alloy c103
C103-Alloy-Quality-Inspection.

Product Specifications

Product Name: C103 Niobium Hafnium Alloy Bar

Material Grade: Nb-10Hf-1Ti (UNS R04295)

Purity: ≥99.9% (Nb base)

Diameter Range: 3 mm – 120 mm

Length: Customizable

Standard: ASTM B393 / ASTM B394

Condition: Forged, Rolled, Annealed

Custom sizes and tolerances can be provided based on specific requirements.

Applications

C103 niobium alloy bars are widely used in:

  • Aerospace thermal protection systems
  • Rocket nozzles and propulsion components
  • High-temperature structural parts
  • Vacuum furnace components

This material is designed for high-performance industrial applications and is not intended for decorative or low-grade use.

Manufacturing and Quality Control

Production is carried out using vacuum melting and controlled processing to ensure purity and structural consistency. Each batch undergoes chemical composition analysis and mechanical property testing to meet industrial standards.

Strict quality control is applied throughout the entire process, from raw material selection to finished product inspection.

Supply Capability

We support both small-batch and bulk supply, including:

Standard bars for machining
Custom dimensions for specific applications
Stable long-term supply for ongoing projects

FAQ

Q: Q1: When ordering C103 niobium hafnium alloy bars from Shaanxi Zhongheng Weichuang Metal Materials Co., Ltd, how should buyers determine the machining allowance for their components?

A: A: The required machining allowance depends on the finished component dimensions, machining process, and dimensional tolerances. Buyers should provide the finished-part drawing or target dimensions so that the required bar size and available machining allowance can be reviewed before ordering.
Q2: What should be agreed upon before testing a sample of C103 niobium alloy bar?
A: Before sample testing, buyers should define the intended evaluation method, acceptance criteria, and any required inspection documents. If the sample must represent a particular production condition or material batch, this should also be confirmed before the sample is prepared.
Q3: How can buyers verify that the inspection report corresponds to the delivered C103 niobium alloy bars?
A: Buyers should confirm the report identification details and the applicable material or batch references with the supplier. Any required links between the inspection report, material identification, and delivery documents should be agreed upon before shipment.
Q4: What additional inspection requirements should be specified for C103 bars used in critical components?
A: If a project requires additional checks for internal discontinuities, surface defects, or other acceptance conditions, buyers should state the applicable inspection method and acceptance criteria in advance. The supplier should confirm whether the requested inspection can be provided before the order is finalized.

Request a Quote

Please provide your required size and quantity to receive a quotation.

Samples are available for testing and evaluation before bulk orders.
