Hafnium Coil

Your Leading Hafnium Coil Supplier

Shaanxi Zhongheng Weichuang Metal Materials Co., Ltd. specializes in the export of metal materials. The company mainly engages in the production of conventional processed profiles such as plates, strips, foils, rods, wires, and tubes made of tantalum, niobium, hafnium, tantalum tungsten alloy, niobium hafnium alloy c103. The application range of non-ferrous metals such as tantalum, niobium, and titanium is very wide, mainly involving multiple fields such as electronics industry, metallurgical industry, chemical industry, aerospace, biomedical engineering, superconducting industry, etc.

Why Choose Us?

Professional Team

With an experienced technical team and skilled engineers, we specialize in Tungsten Processed Parts production, ensuring stable quality, precise machining, and reliable technical support for global customers.

Quality Control

From raw material selection to final inspection, every Tungsten Processed Part is produced under strict quality control. Advanced equipment and standardized processes ensure consistency, accuracy, and performance.

OEM & ODM Available

We provide customized Tungsten Processed Parts based on drawings or specifications, supporting various sizes, shapes, and tolerances to meet different industrial and high-temperature application needs.

Broad Market

Our Tungsten Processed Parts are supplied to customers in Europe, North America, and other international markets, supported by efficient logistics, stable lead times, and professional export service.

Types of Hafnium Coil

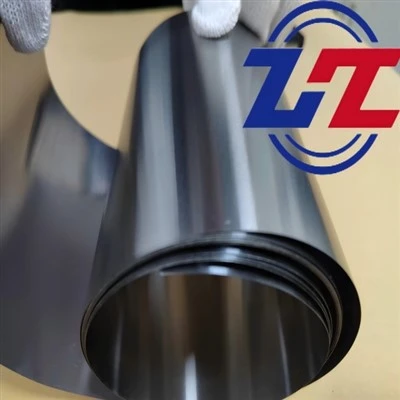

99.95% Hafnium Foil

99.95% hafnium foil refers to an extremely thin sheet made of hafnium metal with a purity of up to 99.95% (usually referred to as 3N5 grade) through precision processes such as rolling. This purity level means that its total impurity content is strictly controlled below 0.05%, making it a high specification product in hafnium foil designed to cope with extremely harsh application environments.

Acid Resistant Hafnium Foil

Acid resistant hafnium foil is a special foil material made from high-purity metal hafnium (≥ 99.9%) as the substrate, through precision rolling and surface treatment. It is a key material in the fields of chemical engineering, nuclear energy, and high-end manufacturing.

Specifications of Hafnium Coil

Material	Pure Hafnium (Hf)
Purity	≥99.95%
Appearance	Silvery metallic
Density	~13.31 g/cm³
Melting Point	~2227 °C
Boiling Point	~4602 °C
Young's Modulus	~78 GPa
Vickers Hardness	~150–180 HV
Poisson's Ratio	~0.26–0.37
Thermal Conductivity	~23 W/m·K
Electrical Resistivity	~32–35 µΩ·cm
Thermal Expansion	~5.9 µm/m·K
Form	Coil / wound wire
Coil Diameter Range	Custom per drawing
Wire Diameter Range	Custom per specification
Surface Finish	Clean / annealed / pickled
Manufacturing Method	Hot rolling / cold finishing / winding
Typical Application	Electrical components, heating elements, hightemp parts

Customizable Options

Diameter: Customizable

Length: Customizable

Coil Pitch: Customizable

Surface Finish: Customizable

MOQ: Customizable

Physical Properties of Hafnium Coil

Appearance	Solid
Melting Point	2506 K (2233°C, 4051°F)
Boiling Point	4876 K (4603°C, 8317°F)
Heat of Fusion	27.2 kJ/mol
Heat of Vaporization	648 kJ/mol
Molar Heat Capacity	25.73 J/(mol•K)

Applications of Hafnium Coil

Plasma Cutting Electrodes:

Hafnium wire is commonly used as the electrode material for plasma cutting machines.

Nuclear Industry:

Hafnium wire is widely used in nuclear reactors' control rods and shielding materials.

Electronics Industry:

Hafnium wire is a lead material in electronic devices, especially at high temperatures and frequencies.

Alloy Additives:

Hafnium wires are used as additives to improve the alloys' mechanical properties and corrosion resistance.

Surface treatment OF Hafnium Coil

Annealing

Annealing is a heat treatment process mainly used in metallurgy to increase the ductility and reduce the hardness of a material. This change is caused by the reduction of number of dislocations in the crystal structure of the material that is annealed. A lot of times, annealing is performed after a material has undergone a hardening or a cold working process. Annealing prevents such materials from becoming brittle or increase formability.

Pickling

Pickling is a metal treatment process used to remove superficial impurities from metal. It involves the use of an acidic solution known as pickle liquor, which contributes to the name.
The main step involved in pickling is the treatment of the target material in acidic solution. The metal is submerged in pickle liquor, which erodes any oxide or other impurities remaining on the surface of the metal.

Mechanical Properties of Hafnium Coil

Properties	Metric	Imperial
Tensile strength	485 MPa	70300 psi
Yield strength	125 MPa	18100 psi
Poisson's ratio	0.265	0.265
Shear modulus	54 - 58 Gpa	7.83204- 8.41219 psi
Elongation at break	25%	25%

Hafnium Foil For Semiconductor Equipment

Payment Terms

T.T with 30% downpayment, 70%before shipment.
Paypal or West Union also accept.

Our Certificates

Packaging and Shipping

Packaging:	Wrapped by proctective film;
Packaging:	Packed by standard import & export wooden cases or carton boxes.
Shipping:	By logistics; by automobile; by train; by shipping; by air.

productcate-596-286

fAQ

Q: Can cobalt tube be used for medical device components?

A: Yes, cobalt tube is suitable for medical tools and implants thanks to its durability and material stability.

Q: What temperature range can cobalt tube withstand?

A: Cobalt tube maintains mechanical performance across wide temperature ranges in industrial and aerospace environments.

Q: Are the dimensions of cobalt tube precise for assembly parts?

A: Yes, cobalt tube is manufactured with tight dimensional tolerances for reliable fitting and high precision.

Q: Does surface finish matter for cobalt tube performance?

A: Yes, polished and precision-treated cobalt tube finishes improve corrosion resistance and application reliability.

Q: Is cobalt tube resistant to harsh chemical environments?

A: Yes, cobalt tube shows strong corrosion resistance against acids, alkalis and high-temperature oxidation.

Q: How strong is a cobalt tube compared to stainless steel?

A: Cobalt tube typically offers higher strength and wear resistance than many stainless steels under extreme conditions.

Q: Why choose hafnium coil for high temperature parts?

A: Hafnium coil offers excellent high temperature strength and stability, ideal for refractory and industrial heating uses.

Q: Is hafnium coil suitable for aerospace applications?

A: Yes, hafnium coil's heat resistance and strength make it suitable for aerospace and high‑stress environments.

Q: Can hafnium coil be used in nuclear technology parts?

A: Yes, hafnium's neutron absorption and durability allow hafnium coil components in specific nuclear and energy systems.

Q: Are there size limits for hafnium coil lengths?

A: Hafnium coil lengths can be customized based on project needs, enabling flexible design and assembly.

Q: How does hafnium coil handle corrosive environments?

A: Hafnium coil has strong corrosion resistance, extending operational life in industrial conditions.

Q: What applications use hafnium coil most often?

A: Hafnium coil is used in electrical devices and heating systems where high heat resistance and conductivity are needed.

We're professional hafnium coil manufacturers and suppliers in China, specialized in providing high quality customized service. We warmly welcome you to buy hafnium coil for sale here and get pricelist from our factory. For price consultation, contact us.
