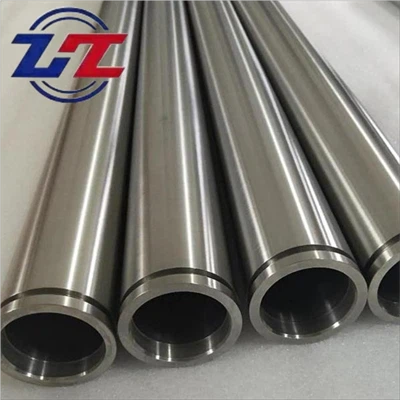

Zirconium-2.5 Niobium Alloy Tube
Zirconium-2.5 niobium alloy tube is an advanced engineering alloy tube made by adding about 2.5% niobium element to zirconium matrix. This alloy was originally developed to enhance the performance of nuclear reactor materials. Through the solid solution strengthening and phase transformation strengthening effects of niobium, its comprehensive mechanical properties and corrosion resistance are significantly better than pure zirconium.
Nowadays, it has successfully crossed fields and become the preferred material for critical applications that require extreme reliability, high strength, and excellent biocompatibility. Its unique α+β biphasic microstructure, controlled by precise thermal mechanical processing technology, makes it perform exceptionally well in the fields of chemical engineering, medical implantation, and special equipment.
Description
This product is an ideal material for manufacturing long-term human implants. Compared with pure zirconium or other titanium alloys, Zirconium-2.5 niobium alloy can form a hard, dense, and biologically inert zirconia ceramic layer on the surface after special oxidation treatment. This enables it to achieve high wear resistance and fatigue strength while maintaining excellent biocompatibility. It is mainly used for manufacturing artificial hip joint femoral heads, knee joint replacement components, and dental implant abutments. Its wear rate is reduced by more than 90% compared to traditional cobalt chromium alloys, greatly extending the service life of implants and improving patients' quality of life.
Equipment and Product Display
We understand that the quality and reliability of materials used in medical and high safety requirements fields are absolutely essential. Our Zirconium-2.5 Niobium alloy tubes are produced entirely in a clean workshop, following the ISO 13485 Medical Device Quality Management System. Each batch of raw materials has a complete material certification report, and each pipe has an independent melting furnace number and processing batch number, achieving full traceability from raw materials to finished products. Before leaving the factory, all products undergo 100% eddy current testing, strict dimensional tolerance testing, and biocompatibility testing in accordance with ASTM F2384 standards (or provide test reports) to ensure that they fully meet the requirements for surgical implant applications.
Zirconium-2.5 niobium alloy provides a superior solution for applications that require corrosion resistance, high strength, and low modulus simultaneously. Our specific advantages include:
- The perfect balance between strength and toughness: The tensile strength can reach over 550 MPa, far higher than pure zirconium, while maintaining good impact toughness.
- Lower elastic modulus: Compared to titanium alloy, its elastic modulus is closer to human bones, which can effectively reduce the "stress shielding" effect and promote bone growth and healing.
- Multi functional applicability: The same high-performance material platform can meet the demanding requirements of medical implants and can also be used for high-pressure, highly corrosive medium heat exchanger tubes in the chemical industry, providing customers with a unified and reliable solution across industries.
Regular inventory specifications: outer diameter 10-80mm, wall thickness 1-8mm, length up to 6 meters. We can provide precision machining services based on customer drawings, including cutting to length, end face polishing, and inner and outer diameter polishing to mirror level Ra<0.2 μ m. For medical device customers, we can assist in completing the technical documentation support required for material registration and filing.
